OpenAPI Explorer

This example shows a three-pane explorer:

operations list
operation details
schema details

Unlike activity_monitor, this example is not driven by realtime updates. It is driven by structured information browsing.

That makes it a useful reference for a different class of terminal application: not a monitor, but an explorer.

The main pipeline inside OpenAPI Explorer

1a loader reads a local file or remote URL

2a parser converts raw OpenAPI into an intermediate model

3the left pane renders operation navigation

4the middle pane renders operation details

5the right pane renders schema or ref details

Run it


cargo run -p ansiq-examples --example openapi_explorer -- --input /path/to/spec.yaml

You can also pass a remote URL:


cargo run -p ansiq-examples --example openapi_explorer -- --input https://example.com/openapi.yaml

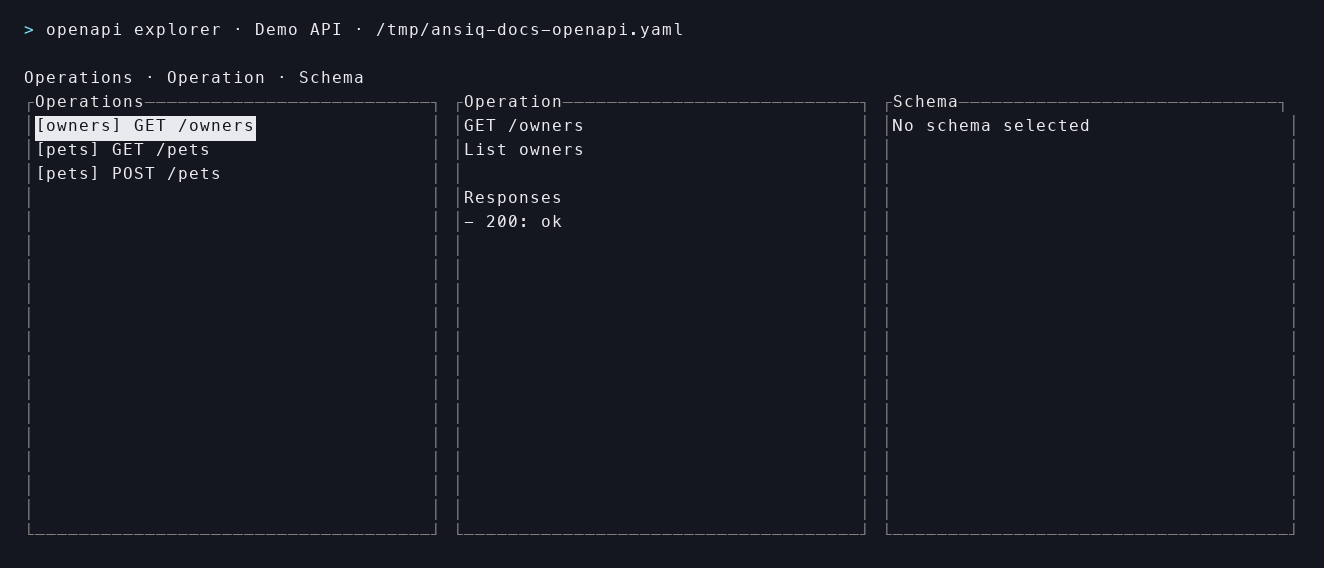

The real openapi_explorer example running in a terminal.

What this example demonstrates

It is useful for understanding:

split-pane layout
selection and detail browsing
local file and remote URL loading
how structured data can be turned into a TUI explorer

Widgets to study alongside this example

Why this example matters

Many terminal examples only show:

lists
tables
forms

But a real TUI often also needs to answer a different question:

How do you browse a large structured document in limited terminal space?

That is what this example is really about.

It is not a request client. It is:

a document browser
a navigation surface
a schema inspector

What to observe at runtime

1. The left pane is not raw YAML or JSON

It is a navigation model prepared for browsing. That is an important architectural choice: the UI should not read raw OpenAPI structure directly.

2. The middle and right panes have different responsibilities

middle: operation details
right: schema or reference details

That split works well in Ansiq because it gives navigation, primary detail, and supporting detail their own regions.

3. Most complexity lives in data preparation

This example is a good reminder that once an application deals with real formats, the hardest part is often not the UI itself, but:

loading
parsing
intermediate models
selection logic

How to read the code

A good order is:

loader
parser
models
scenario state
only then the three-pane layout

If you start with the UI tree, it will look like “just three panes”. The real lesson is how OpenAPI documents are transformed into a browsing model that fits terminal interaction.

What this example does not do

It intentionally does not yet implement:

sending requests
history
command mode
advanced filtering

That keeps the boundary clear: first build a strong browser, then decide whether it should become an API client.
